MEASUREMENT - TESTING DEVICES

U phase test head (6k~81.5kV) 2.45m SEW 290HD
290HD / SEW - Taiwan
- Test voltage range: 6kV~81.5kV
- Operating voltage: 2.7kV (Compared to ground)
- Display: Red light, Sound 50dB at 3m
- Club length: 1370±50mm (retracted) and 2450±50mm (extended)
- Frequency: 50/60Hz
- Withstand voltage: 100kV/300mm for 1 minute
- Insulation resistance: 2000MΩ min at 1kV
- Detection current: 100uA or less than 100uA
- Operating temperature: 0°C~40°C
- Battery source: 2 button-cells LR44 (1.5V)
- Weight: 590g (including battery)
- Standard: IEC / EN 61243-1
0 ₫ 0.0 VND
U phase test head (6k~36.5kV) 1.52m SEW 230HD
230HD / SEW - Taiwan
- Test voltage range: 6kV ~ 36.5kV
- Operating voltage: 2.7kV (Compared to GND)
- Display: Red light, Sound 50dB at 3m
- Club length: 893±50mm (retracted) and 1520±50mm (extended)
- Frequency: 50/60Hz
- Withstand voltage: 100kV/300mm for 1 minute
- Insulation resistance: 2000MΩ min at 1kV
- Detection current: 100uA or less than 100uA
- Operating temperature: 0°C~40°C
- Battery source: 2 button-cells LR44 (1.5V)
- Weight: 485g (including battery)
- Standard: IEC / EN 61243-1
0 ₫ 0.0 VND

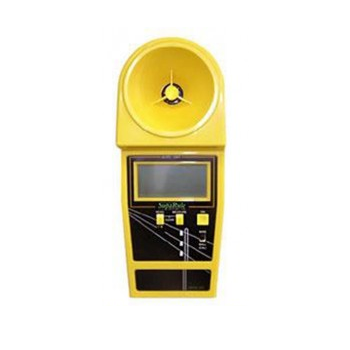

Line deflection meter 600E
CHM600E / Suparule -Ireland
- Cable range: 23m/75ft; Measure 6 wires
- Operating temperature: -10°C - 40°C
- Size: 205x100x70 mn
- Weight: 0.5 kg
- Handheld cable height measuring device. To measure cable height distance, deflection and overhead clearance.
- Simple operation with 3 buttons ensures fast and effective measurements
- Auto power off function helps save battery when inactive after three minutes
- Measurement applications: Telephone lines, Distribution lines, Transmission lines, Cable TV (installers and contractors), Street lights, Sag (lowest point above ground), Dark separation six cable multi.
0 ₫ 0.0 VND
Total electrical tester THT292201
THT292201 / Total - China
- Test voltage: AC100-500V
- Digital: 12-220V
- Dimensions: 135mm x 23mm x 17mm
- Check the sensor to find the phase line, ground line and disconnection point of the phase line
- Packed in double blister
0 ₫ 0.0 VND

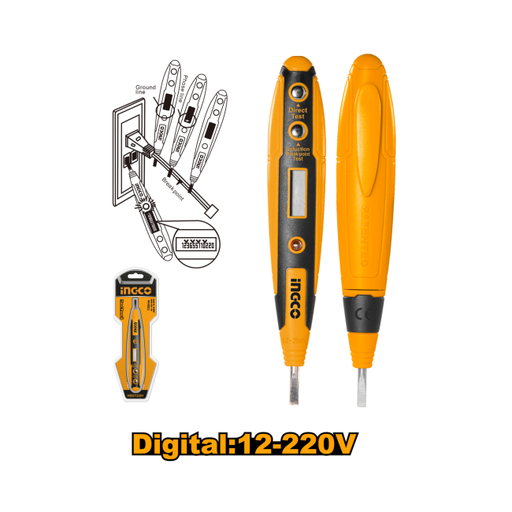

Ingco HSDT2201 Digital Electrical Tester
HSDT2201 / Ingco
- AC Voltage: 100-500V,
- Digital: 12-220V
- Size: 135mm * 23mm * 17mm
- No need to install battery
- Double blister packing
0 ₫ 0.0 VND

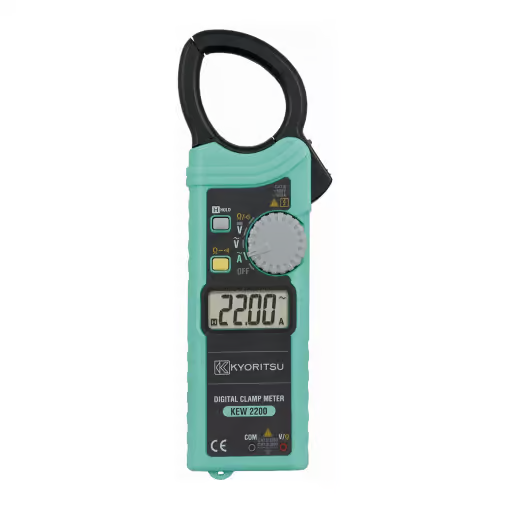

Kyoritsu 2200 Clamp Meter
2200 / Kyoritsu
- Clamp diameter: Ø33mm
- AC current: 40.00/400.0/1000A
- AC voltage: 4.000/40.00/400.0/600V
- DC voltage: 400.0mV/4.000/40.00/400.0/600V
- Resistance: 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ
- Power source: R03/LR03 (AAA) (1.5V) × 2
- Dimensions: 190(L) × 68(W) × 20(D)mm
- Weight: ~120g
- Accessories: 7107A test probe, Box 9160, R03 (AAA) × 2, Instruction Manual
- Standard: IEC 61010-1 CAT III 600V / CAT II 1000V ; IEC 61010-2-031 IEC 61010-2-032
0 ₫ 0.0 VND
