Electrical Measuring Tools

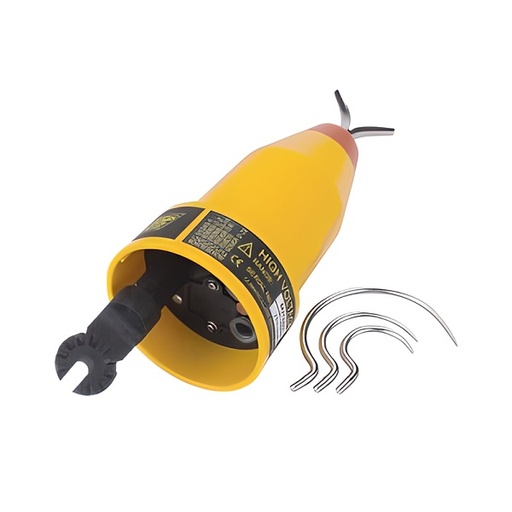

Direct electrical test head SEW 220HVD - 6.6/132kV
220HVD / SEW - Taiwan
- LED and audio indication when voltage is detected
- Voltage range: 6.6/132kV ; Threshold voltage: 2kV-3kV
- Frequency: 50-60Hz
- Dimensions: 300x100x100 mm
- Weight: 550g
- Standard: EN 61243-1
- Suitable for indoor and outdoor use (in all weather conditions). Compatible with all link bars. Automatically turns off after 3 minutes if no voltage is detected. Waterproof design, protection class IP65
0 ₫ 0.0 VND

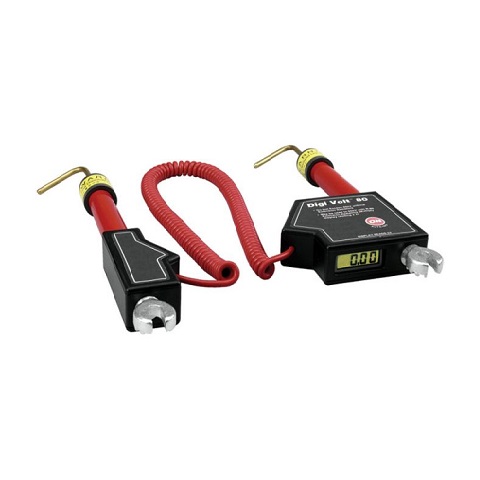

HD Electric DVM-80UVM Digital Voltmeter and Phasing Tester (50V-40kV)
DVM-80UVM / HD Electric - USA
- Operating Voltage: 50V - 40kV (Up to 80kV with additional resistor)
- Operating Temperature: –25°C to +55°C
- Operating Frequency: 50-1000Hz AC/DC
- Backlit LCD display, easy to read in low light or dark conditions
- Fiberglass Rod Diameter: 1”(2.54cm)
- Connection Cord Length: 12'(3.6m) when extended; 3.5'(1.7m) when retracted
- Dimensions: Length (without probe): 15”(38cm)
- Weight (without probe): 1.02kg
0 ₫ 0.0 VND
PD800IW wireless phase isotope tester
PD800IW is a wireless phase isotope tester designed for convenient phase angle testing, easy to use because it does not require connecting cables between probes. The device includes a probe and a reference probe that are connected via wifi and will operate reliably at distances of up to 100 feet (30 meters). The device can use voltage levels from 120V to 800kV
Specifications
- Type: PD800W.
- Place of manufacture: Bierer Associates Inc (USA).
- Use indoors and outdoors.
- Operating temperature: -100C to +500C.
- 9V rechargeable battery with removable charger 220V/50Hz.
- LED screen displays phase difference angle.
0 ₫ 0.0 VND

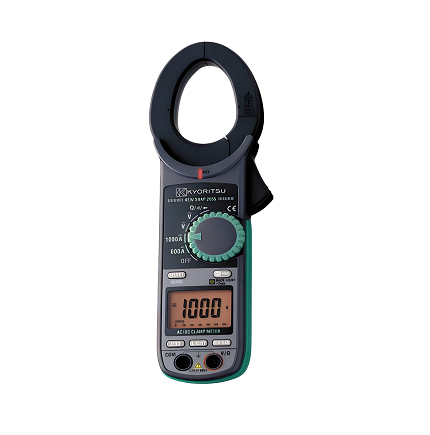

KYORITSU 2055 AC/DC Clamp meter (600/1000A)
2055 / Kyoritsu - Japan
AC A : 0~600.0/1000A
DC A : 0~600.0/1000A
AC V : 6/60/600V
DC V: 600m/6/60/600V
Ω : 600/6k/60k/600k/6M/60MΩ
- Continuity check: Buzzer sounds 100Ω
- Frequency: 10/100/1k/10kHz
- Diameter of pliers: Ø40mm
- Effect frequency: 40 ~ 400Hz
- Power source: R03 (1.5V) (AAA) × 2
- Dimensions: 254(L) × 82(W) × 36(D)mm
- Weight: 310g
- Accessories: Measuring probe, Battery, Carrying case, User manual
0 ₫ 0.0 VND
Hioki FT6380-50 earth resistance measuring device
FT6380-50 / Hioki - Japan
- Ground resistance range: 0.20 Ω to 1600 Ω, 10 ranges
- AC current range: 20.00 mA to 60.0 A 5 ranges
- Current measurement: 100 A AC continuous, 200 A AC for 2 minutes or less
- Maximum rated ground voltage: 600 VAC
- Maximum measurable wire diameter: φ 32 mm (1.26 in)
0 ₫ 0.0 VND

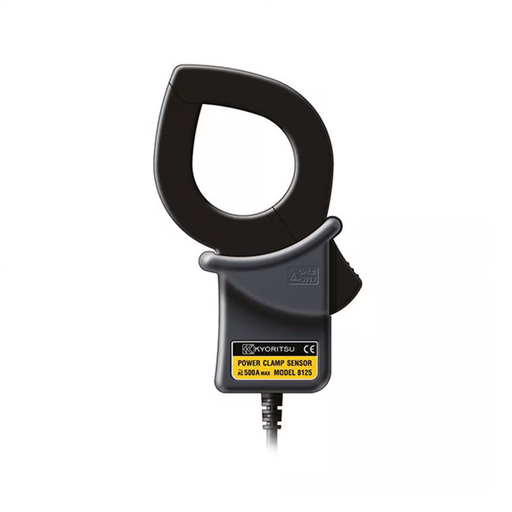

Kyoritsu 8125 Clamp meter (500A)
8125 / Kyoritsu - Japan
- Diameter of pliers: Ø40mm
- Current measuring range: AC 500A
- Output voltage: AC 500mV/500A
- Phase shift: ±1.0º
- Output impedance: 2Ω
- Optional accessories: Jack 7146; Extension cord 7185
0 ₫ 0.0 VND

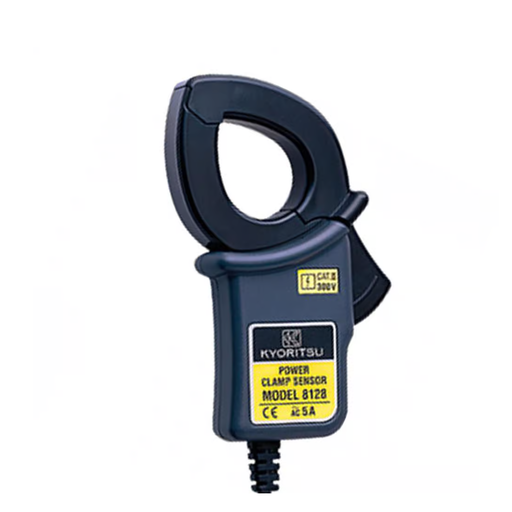

Kyoritsu 8128 Clamp meter (5A - Max.50A)
8128 / Kyoritsu - Japan
- Diameter of pliers: Ø24mm
- Current measuring range: AC 5A (Max.50A)
- Output voltage: AC 50mV/5A
- Phase shift: ±2.0º (45 – 65Hz)
- Output impedance: About 20Ω
- Optional accessories: Jack 7146; Extension cord 7185
0 ₫ 0.0 VND

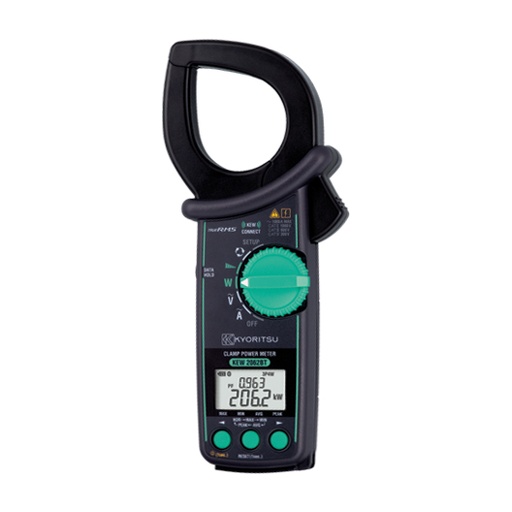

Kyoritsu 2062BT Clamp meter
2062BT / Kyoritsu - Japan
- AC voltage: 1000 V
- Crest factor: 1.7 or less
- AC current: 40/400/1000 A (3 automatic measurement ranges)
- Frequency: 40.0 – 999.9Hz
- Operating power: 40.00/400.0/1000kW
- Reactive power: 40.00/400.0/1000kVA
- Apparent power: 40.00/400.0/1000kVar
- Power factor (cos Ø):  -1.000 – 0.000 – +1.000.
- Total harmonic THD-R/THD-F: 0.0% – 100.0%
- Phase order: ACV 80 – 1100V (45 – 65Hz)
- Clamp diameter: φ55mm max
0 ₫ 0.0 VND

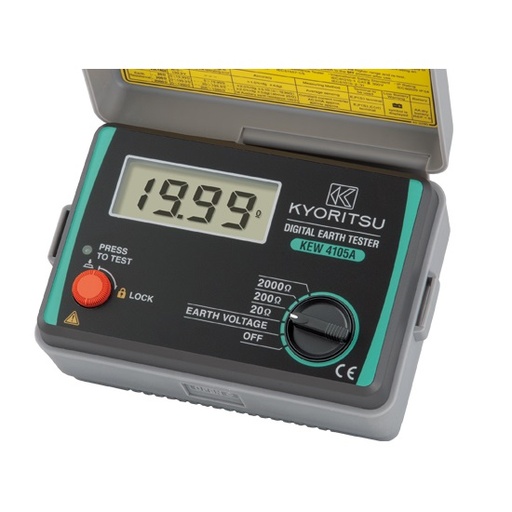

Đồng hồ đo điện trở đất Kyoritsu model 4105A
4105A / Kyoritsu
- Resistance: 0~20Ω/0~200Ω/0~2000Ω
- Earth voltage [50,60Hz]: 0~200V AC
- Power supply: R6P (AA) (1.5V) × 6
- Dimensions: 105(L) × 158(W) × 70(D)mm
- Weight: 550g
- Accessories: 7095A (red-20m, yellow-10m, green-5m); 8032; 7127A ; R6P (AA)×6 ; Instruction Manual
0 ₫ 0.0 VND

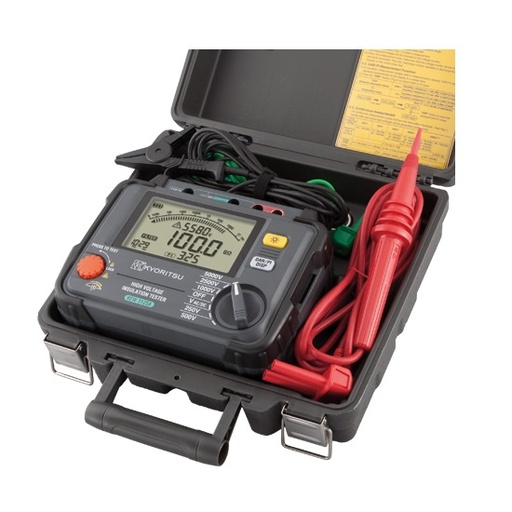

Máy đo điện trở cách điện KYORITSU 3125A
3125A / Kyoritsu - Japan
- AC/DC voltage measurement: 30 ~ 600V
- Short circuit current: 1.5mA
- Test voltage: 250V/500V/1000V/2500V/5000V
- Resistance measurement range: 100.0MΩ/1000MΩ/2.00GΩ/100.0GΩ/1000GΩ
- Accuracy: ±5%rdg |±3dgt, ±20%rdg (100GΩ or more)
- Power supply: DC12V: LR14/R14 × 8pcs
- Accessories: 7165A (Line probe); 7264A (Earth probe); 7265A (Guard probe); 8019 (Hook type prod) ; 9181 (Carrying case) ; LR14×8pcs (Battery) ; User manual.
0 ₫ 0.0 VND

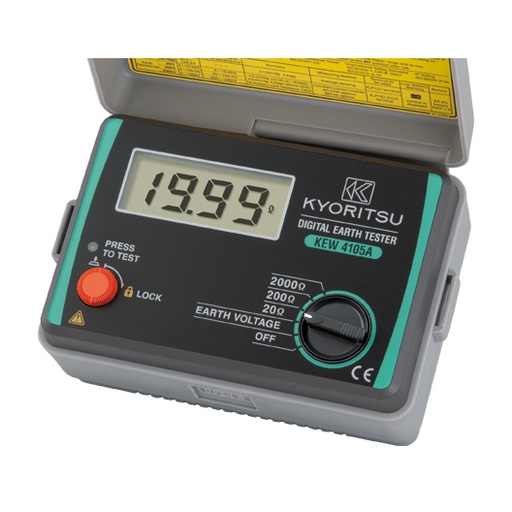

Đồng hồ đo điện trở đất Kyoritsu 4105A-H
4105A-H / Kyoritsu
- Resistance: 0~20Ω/0~200Ω/0~2000Ω
- Earth voltage [50,60Hz]: 0~200V AC
- Accuracy
+ Resistance: ±2%rdg±0.1Ω (20Ωrange)
±2%rdg±3dgt (200Ω/2000Ωrange)
+ Earth voltage: ±1%rdg±4dgt
- Power supply: R6P (AA) (1.5V) × 6
- Dimensions: 105(L) × 158(W) × 70(D)mm
- Weight: 550g
- Accessories: 7095A (red-20m, yellow-10m, green-5m); 8032; 7127A ; R6P (AA)×6 ; Instruction Manual
0 ₫ 0.0 VND

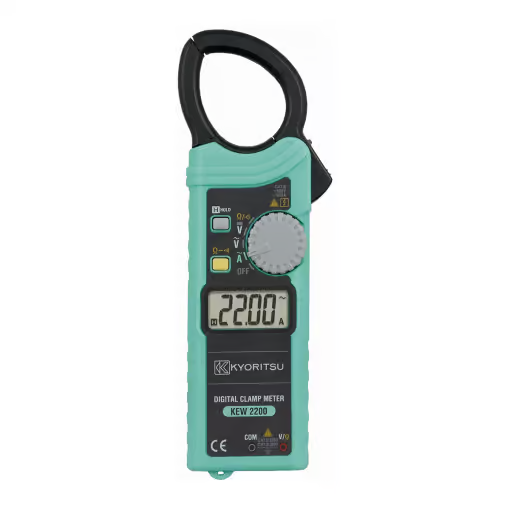

Kyoritsu 2200 Clamp Meter
2200 / Kyoritsu
- Clamp diameter: Ø33mm
- AC current: 40.00/400.0/1000A
- AC voltage: 4.000/40.00/400.0/600V
- DC voltage: 400.0mV/4.000/40.00/400.0/600V
- Resistance: 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ
- Power source: R03/LR03 (AAA) (1.5V) × 2
- Dimensions: 190(L) × 68(W) × 20(D)mm
- Weight: ~120g
- Accessories: 7107A test probe, Box 9160, R03 (AAA) × 2, Instruction Manual
- Standard: IEC 61010-1 CAT III 600V / CAT II 1000V ; IEC 61010-2-031 IEC 61010-2-032
0 ₫ 0.0 VND
High Voltage Detector GD-HT9100B
GD-HT9100B / China
- Voltage range: 0.1kV~220kV(3kV-6.3kV-10kV-35kV-66kV-110kV-220kV)
- LCD display: 47mm x 28.5mm, with backlight
- Audible alarm and double red flash
- Display speed: 2 times/second
- Auto power off: After 15 minutes of non-use
- Clamp diameter: φ60mm (1800B)
- Dimensions: Receiver: 78×165×42mm; Detector: 300×237×85mm
- Insulation pole: Maximum diameter Ø38mm; Length: 1050mm (retracted), 4500mm (extended)
- Weight: 5.6kg (including insulating pole and accessories)
0 ₫ 0.0 VND
