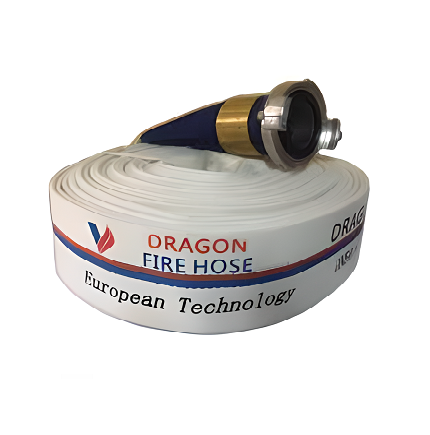

DN50x20M / Dragon - VN
- Inner diameter: 51mm
- Length: 20m±0.2m
- Faucet thickness: 1.15mm
- Working pressure: 1.6Mpa
- Weight: 4.3±0.2kg
- Faucet body: PVC inner coating with higher durability and anti-aging than rubber makes the faucet lighter and easier to use.
- Outer fabric layer of the push faucet: 100% Polyester (durable fiber, anti-friction, high abrasion resistance)
- Joint: high quality aluminum alloy, fireproof paint, resistant to strong impacts without breaking or cracking.
- Joint and faucet body are connected by hydraulically pressed steel belt, safe during use with high pressure.
- Standard: TCVN5740:2009

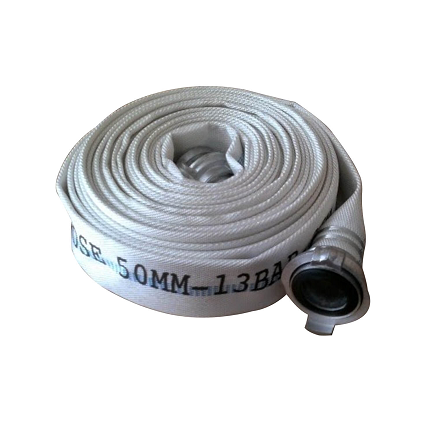

Fire hose D65 16 bar 20 meters long with joints
- Joint: 65mm
- TCVN - Origin: China
- Length (m): 20 m
- Weight: about 7 kg
- Material / Color: Polyester Yarn / White
- Working pressure (Br): 16 Bar
- Diameter: DN65Material:
- Jacket: 1 layer woven with polyester filament. Inner lining: high quality PVC
- Feature: High quality, High flow rate, No maintenance required
- Standard: conforms to BS EN 15182-1:2007 + A1 2009 Part 1 & Part 3; Quality certification: ISO 9001

Hose Ø65 X 30m -17 bar + coupling (Germany)
-Fire hose reel (also known as water hose) is used to carry water from the fire valve to the fire
- The hose reel includes an aluminum coupling, which can be connected directly to the valve, pump, or hose reels connected in series.
- The outer layer is woven from 100% highly durable synthetic fiber and the inner layer is made of high quality EPDM vulcanized rubber.

- Origin: China
- Fire hose D65 16 bar 20 meters long with joints
- Joint: 65mm TCVN
- Length (m): 20 m
- Weight: about 7 kg
- Material / Color: Polyester Yarn / White
- Working pressure (Br): 16 Bar
- Diameter: DN65Material:
- Jacket: 1 layer woven with polyester filament yarn
- Inner lining: high quality PVC
- Feature: High quality, High flow rate, No maintenance required
- Standard: conforms to BS EN 15182-1:2007 + A1 2009 Part 1 & Part 3; Quality certification: ISO 9001

TCVN - Origin: China

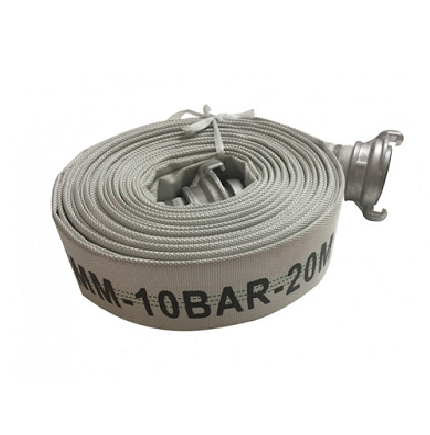

- Fire hose D65 10 bar
- Joint: 65mm
- Length (m): 10 m
- Weight: about 7 kg
- Material / Color: Polyester Yarn / White
- Working pressure (Br): 10 Bar Diameter: DN65 Material:
- Jacket: 1 layer woven with polyester filament yarn
- Inner lining: high quality PVC
- Feature: High quality, High flow rate, No maintenance required
- Standard: conforms to BS EN 15182-1:2007 + A1 2009 Part 1 & Part 3, Quality certification: ISO 9001

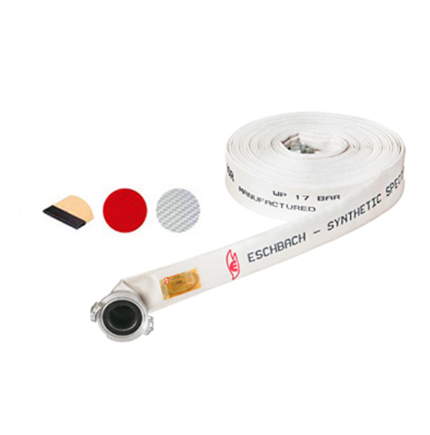

SYNTHETIC SPECIAL 500 / ESCHBACH (Germany)
- Material: Polyester fiber, rubber coated inside
- Working pressure: 17 Bar
- Tested water pressure: 30 MPA
- Pipe diameter: 50mm
- Pipe length: 20m

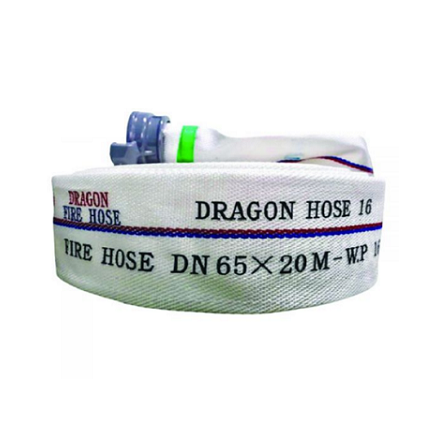

DN65x20M / Dragon - VN
- Inner diameter: 66mm
- Length: 20m±0.2m
- Faucet thickness: 1.15mm
- Working pressure: 1.6Mpa
- Weight: 5.2±0.2kg
- Faucet body: PVC inner coating with higher durability and anti-aging than rubber makes the faucet lighter and easier to use.
- Outer fabric layer of the push faucet: 100% Polyester (durable fiber, anti-friction, high abrasion resistance)
- Joint: high quality aluminum alloy, fireproof paint, resistant to strong impacts without breaking or cracking.
- Joint and faucet body are connected by hydraulically pressed steel belt, safe during use with high pressure.
- Standard: TCVN5740:2009

DN65 / Dragon - VN
- Material: aluminum alloy
- Working pressure: 1.6Mpa
- Spray flow at 1.0bar: 240 liters/minute
- Length of nozzle: 276mm
- Inlet diameter: 57mm
- Nozzle diameter: 19mm
- Weight: 0.47 ±10% Kg
- Standard: TCVN 13261:2021; Connector DT.1-66 (TCVN 5739:1993)

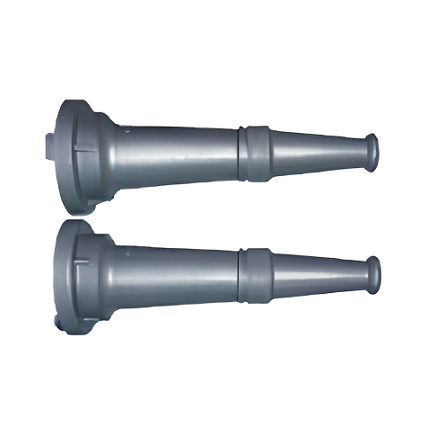

DN50 / Dragon - VN
- Material: aluminum alloy
- Working pressure: 1.6Mpa
- Spray flow at 1.0bar: 112 liters/minute
- Length of nozzle: 276mm
- Inlet diameter: 42mm
- Nozzle diameter: 13mm
- Weight: 0.35±10%Kg
- Standard: TCVN 13261:2021; Connector DT.1-51(TCVN 5739:1993)

SYNTHETIC SPECIAL 500 / ESCHBACH (Germany)
- Material: Polyester fiber, rubber coated inside
- Working pressure: 17 Bar
- Tested water pressure: 30 MPA
- Pipe diameter: 50mm
- Pipe length: 20m

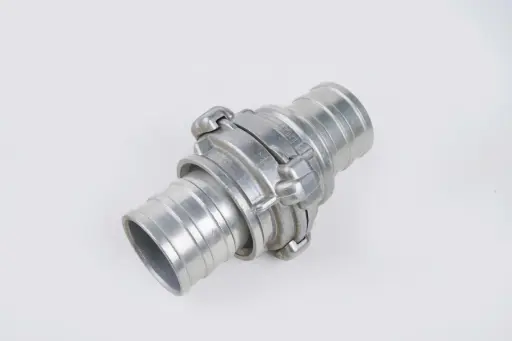

D50 / Vietnam
- Material: aluminum alloy
- Use to connect 50mm diameter hose reel, withstand pressure of 16 Bar
- Meets Vietnam standards: 5739:1993

D65 / Vietnam
- Material: aluminum alloy
- Used to connect 565mm diameter hose reel, withstand pressure of 16 Bar
- Meets Vietnam standards: 5739:1993

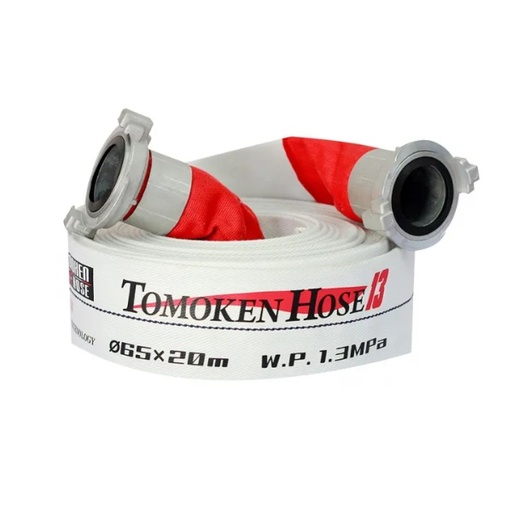

Model: 03-TMKH-206516B / Tomoken-Việt/Nhật
- Chất liệu: ngoài vòi là lớp vải dệt từ sợi Polyeste, bên trong là lớp PVC có độ bám dính cao
- Khớp nối: kiểu Gost - DN65, hợp kim nhôm.
- Áp lực làm việc: 16 bar
- Áp lực thử nghiệm: 35 bar
- Áp lực phá vỡ: 45bar
- Đường kính cuộn vòi: 65mm,
- Chiều dài: 20 m

Model: 03-TMKH-205016B / Tomoken-Việt/Nhật
- Chất liệu: ngoài vòi là lớp vải dệt từ sợi Polyeste, bên trong là lớp PVC có độ bám dính cao
- Khớp nối: kiểu Gost - DN50, hợp kim nhôm.
- Áp lực làm việc: 16 bar
- Áp lực thử nghiệm: 35 bar
- Áp lực phá vỡ: 45bar
- Đường kính cuộn vòi: 50mm
- Chiều dài: 20 m

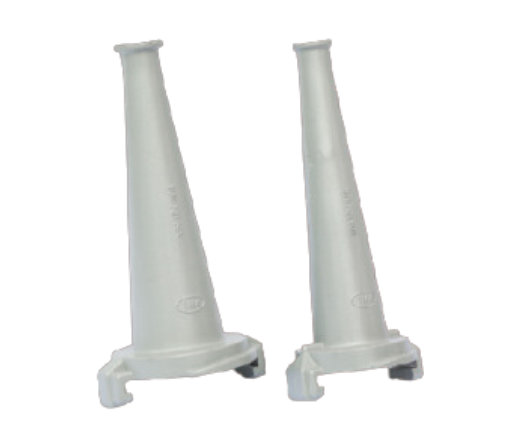

DN50 / Tomoken/ Nhật Bản - VN
- Chất liệu: hợp kim nhôm
- Đường kính miệng lăng:
- Lưu lượng tại áp 1.6Mpa: 11 lits/s
- Áp lực sử dụng tối đa: 1.6Mpa
- Khối lượng: 0.3kg
- Được đúc bằng công nghệ Nhật Bản, bề mặt nhẵn đẹp, độ bền cơ tính cao. Bề mặt chống oxi hóa, mốc....
- Đạt tiêu chuẩn: TCVN 13261:2021 ; TCVN 5739:1993

DN50 / Tomoken/ Nhật Bản - VN
- Chất liệu: hợp kim nhôm
- Đường kính miệng lăng:
- Lưu lượng tại áp 1.6Mpa: 15 lits/s
- Áp lực sử dụng tối đa: 1.6Mpa
- Khối lượng: 0.45kg
- Được đúc bằng công nghệ Nhật Bản, bề mặt nhẵn đẹp, độ bền cơ tính cao. Bề mặt chống oxi hóa, mốc....
- Đạt tiêu chuẩn: TCVN 13261:2021 ; TCVN 5739:1993
