MEASUREMENT - TESTING DEVICES

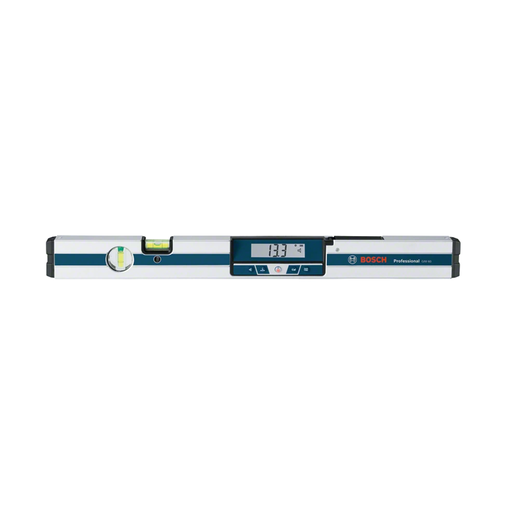

GIM 60 Digital Inclinometer - BOSCH
GIM 60 / BOSCH
- Length: 60 cm
- Measuring range: 0-360 degrees (4x90 degrees)
- Electronic measurement accuracy 0°/90°: ± 0.05°
- Accurate electronic measurement at 1 – 89°: ± 0.2°
- Measurement accuracy, glass tube foam: ± 0.057° = ± 1 mm/m
- Approximate weight: 0.77 kg
- Measurement units: °, %, mm/m
- Measure tilt accurately in degrees, percent or millimeters/meter
- Directional arrows and audio signals at 0° and 90° make adjustments easy
- The measured value can automatically rotate on the screen when operating in an area above the head
0 ₫ 0.0 VND

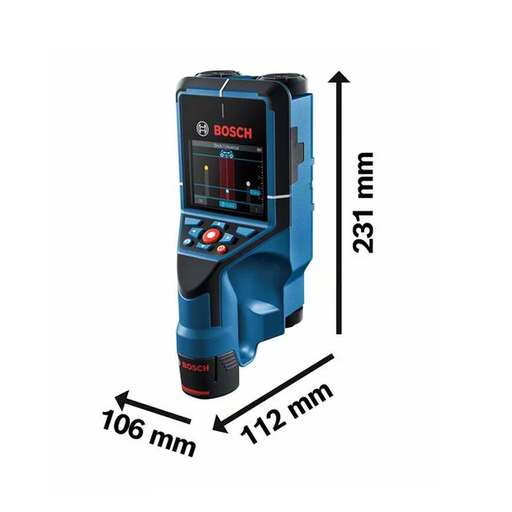

BOSCH D-tect 200 C Multifunction Detector
D-Tect 200 C / BOSCH
- Maximum detection depth:
Detection depth, dry concrete, maximum: 200 mm
Detection depth, young concrete, maximum: 60 mm
Detection depth, other wall types, maximum: 80 mm
Detection depth, magnetic metals, maximum: 200 mm
Detection depth, non-magnetic metals, maximum: 80 mm
Detection depth, live cable, maximum: 80 mm
Detection depth, wooden foundation structure, maximum: 38 mm
- Accuracy: ± 5 mm
- Wall type: Concrete, Young concrete, Dry wall, Regular brick/texture, Horizontal hole brick, Vertical hole brick, Heating board
- Objects that can be detected: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), electrical cables, non-energetic cables, data transmission cables and low voltage (power cables 3-phase, cavity), water-filled plastic pipes, hollow plastic pipes, wooden base structure
- Power supply: 12V Li-ion battery, 10.8V Li-ion battery or 4 1.5V LR6 (AA) batteries
- Weight: approximately 0.64 kg
- Additional functions: Leak detection, distance measurement
0 ₫ 0.0 VND

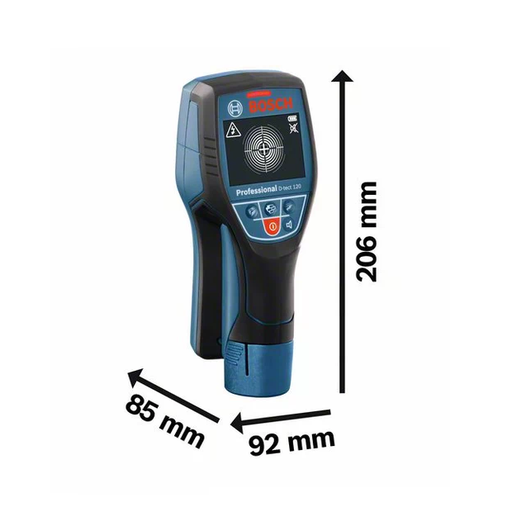

BOSCH D-tect 120 Multifunction Detector
D-Tect 120 / BOSCH
- Maximum detection depth" 120 mm
+ Detection depth, magnetic metal, maximum: 120 mm
+ Detection depth, non-magnetic metals, maximum: 120 mm
+ Detection depth, live cable, maximum: 60 mm
+ Detection depth, wooden foundation structure, maximum: 38 mm
- Accuracy: ± 10 mm* (*additional deviation depends on use)
- Wall type: Concrete, Dry wall, Multi-purpose
- Detectable objects: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), electric cables, non-electrical cables, plastic pipes containing water, wooden base structures
- Power supply: 12V Li-ion battery or 4 1.5V LR6 (AA) batteries
- Automatic deactivation, approximately: 5 minutes
- Weight: approximately 0.5 kg
- Additional functions: Dual power (10.8V/4 1.5V LR6 AA batteries); The center detector has an indicator light that shows the direction of the object
0 ₫ 0.0 VND

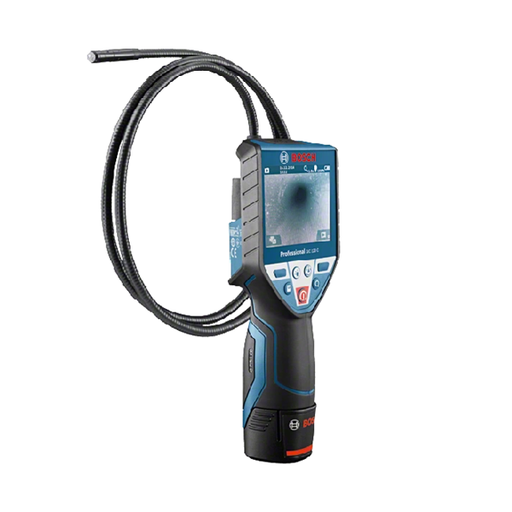

Inspection Camera GIC 120 C
GIC 120 C / BOSCH
- Screen size: 3.5"
- Screen resolution: 320 x 240 px
- Camera head diameter: 8.5 mm
- Camera cable length: 120 cm
- Number of LED lighting levels: 3
- Weight: 0.64 kg
0 ₫ 0.0 VND

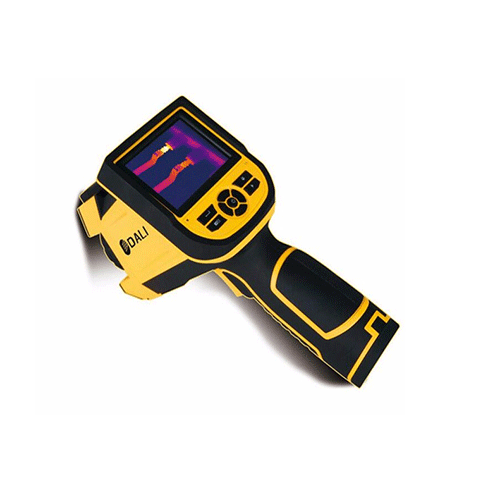

DALI T8 Thermal Camera
T-8 / DALI - China
- Temperature measurement range from -200C to 6500C
- Temperature measurement accuracy:≤± 2 0C
- Spectral range: 8-14 μm
- Long-distance measurement ability: Capable of capturing heat and clear images from the camera position to heat points on electric poles > 14m high
- Thermal image resolution: 384x288
- Thermal imaging point resolution: 1.37 mrad
- Display results directly on the screen.
- When taking photos, the maximum temperature value and minimum temperature value of the thermal imaging area are displayed on the screen.
- Ability to circle the thermal imaging area to display the maximum temperature value, minimum temperature value, and average temperature value of the thermal imaging area
- Working temperature: -15 0C to +50 0C
- Storage temperature: -400 C to +700 C
- Working environment humidity: 10% to 95%
- Image format in one of the following formats: JPEG/JPG/JPE/BMP/GIF/DIB/PNG/TIF/TI/FF saved directly on camera memory or external memory card, easy to download to computer and read with popular application software such as Microsoft Office, ACD See, Adobe Acrobat...
- Storage memory: save to 8GB memory card
- Safety standards according to: CSA (USA): c22.2 No.61010-1-04, UL:UL STD 61010-1 (2nd Edition) ISA: 82.02.01
- Vibration resistance: 2g, IEC 68-2-6
0 ₫ 0.0 VND

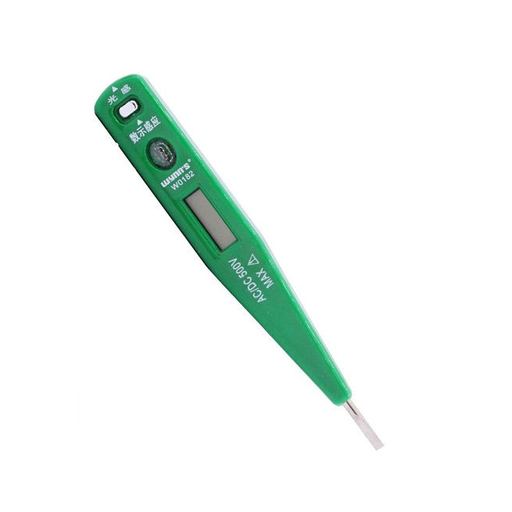

Wynn W0182 electrical tester
W0182 / Wynn's - China
- Measurement voltage range: 12-220VAC/DC, maximum 500VAC/DC
- Size: 1.5x12.5 cm
- LED touch screen with lights
- Material: body made of AS117-250 plastic; Screw rod made of high quality CR-V steel
- Weight: 20g
0 ₫ 0.0 VND
PD800IW wireless phase isotope tester
PD800IW is a wireless phase isotope tester designed for convenient phase angle testing, easy to use because it does not require connecting cables between probes. The device includes a probe and a reference probe that are connected via wifi and will operate reliably at distances of up to 100 feet (30 meters). The device can use voltage levels from 120V to 800kV
Specifications
- Type: PD800W.
- Place of manufacture: Bierer Associates Inc (USA).
- Use indoors and outdoors.
- Operating temperature: -100C to +500C.
- 9V rechargeable battery with removable charger 220V/50Hz.
- LED screen displays phase difference angle.
0 ₫ 0.0 VND

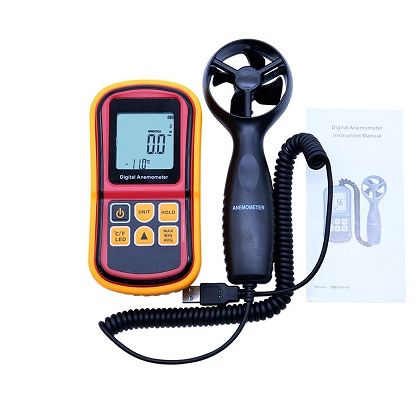

Accutest ACC8901 anemometer
Accutest ACC8901 - used to measure wind speed
- LCD screen with light
- Dimensions 45 x 72 x 35mm
- Weight: 275g
- Air speed measurement: 0 ~ 45 m/s, 0 ~ 140 km/h, 0 ~ 8800 ft/min, 0 ~ 88 knots, 0 ~ 100 mph (± 3%)
- Air temperature measurement: 0 ~ 45oC, 32 ~ 113oF (± 2oC)
- Resolution: 0.2oC, 0.1 m/s
- Speed units: m/s, ft/min, knots, km/hr, mph
- Low battery notification sign: yes
- Auto off: 14 minutes without any operation
- Backlight technology: 12 seconds of operation by pressing any key
- MAX/MIN/AVG reading feature. Convert temperature back and forth between degrees Celsius and degrees Fahrenheit
0 ₫ 0.0 VND

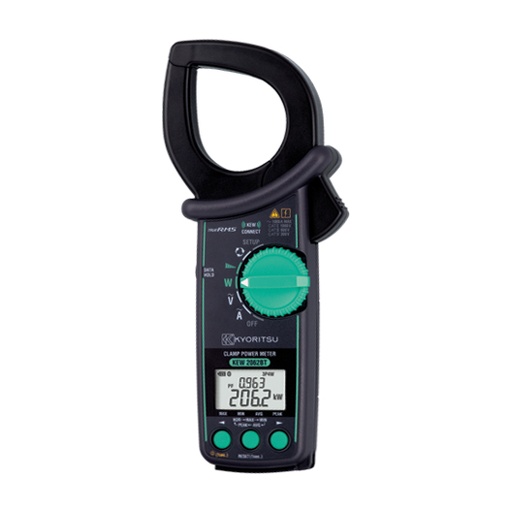

Kyoritsu 2062BT Clamp meter
2062BT / Kyoritsu - Japan
- AC voltage: 1000 V
- Crest factor: 1.7 or less
- AC current: 40/400/1000 A (3 automatic measurement ranges)
- Frequency: 40.0 – 999.9Hz
- Operating power: 40.00/400.0/1000kW
- Reactive power: 40.00/400.0/1000kVA
- Apparent power: 40.00/400.0/1000kVar
- Power factor (cos Ø):  -1.000 – 0.000 – +1.000.
- Total harmonic THD-R/THD-F: 0.0% – 100.0%
- Phase order: ACV 80 – 1100V (45 – 65Hz)
- Clamp diameter: φ55mm max
0 ₫ 0.0 VND

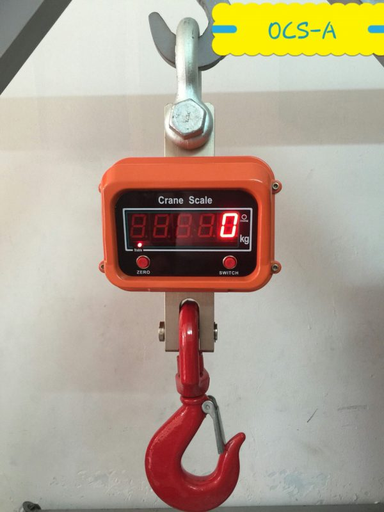

OCS-A 5T Electronic Hanging Scale
OCS-A 5T / Taiwan
- Unit: kg, lb
- Weight capacity: 5000kg
- Jump step: 2000kg
- Red LED screen
- Keyboard with 2 function keys: Zero, Switch
- Power source: 6V10Ah rechargeable battery, 9V / 1500mA DC adapter
- Remote use distance: 10m
- Automatically turns off when not in use. Battery level notification. Automatically adjusts to zero. Specialized for weighing hooks, iron, rolled steel...
0 ₫ 0.0 VND

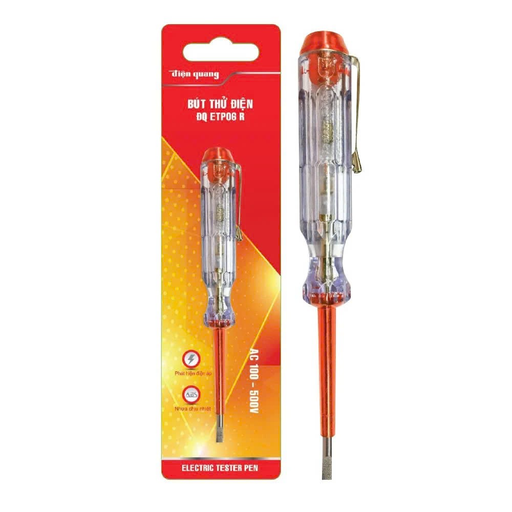

Electric tester ĐQ ETP06 R (140mm)
ĐQ ETP06 R / Vietnam
- Material: C45 steel screw head, ABS plastic handle
- Test voltage: AC 100 - 500V
- Flat screw head
- Size: 140mm
- Weight: 19g
0 ₫ 0.0 VND

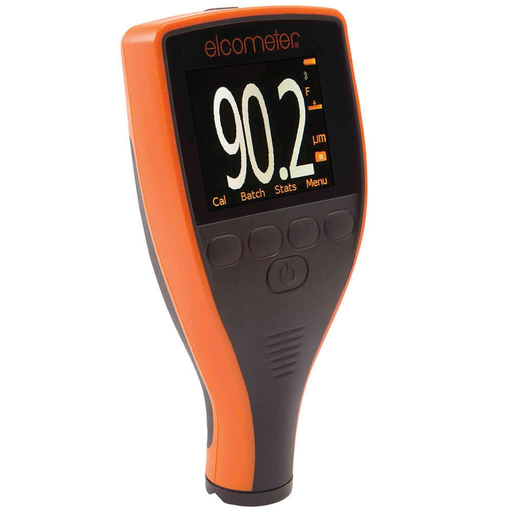

Elcometer A456CFNFSI1 Coating Thickness Gauge (Integrated Probe)
A456CFNFSI1 / Elcometer /UK
(Integrated magnetic and non-magnetic probe)
- Measuring range: 0-1500μm
- Accuracy: ± 1-3% or ± 2.5μm
- Resolution: 0.1μm: 0-100μm; 1μm: 100-1500μm
- Calibration memory type; gauge (g) or gauge & batch (gb): gb
- Gauge memory: 1,500
- Nominal film thickness measurement
- Data output: USB; bluetooth to computer, android device, IOS
- Display: 2.4 inch (6cm) QVGA TFT color screen, 320 x 240 pixels
- Dimensions: 141 x 73 x 37 (mm)
- Operating temperature: -10°C to +50°C
- Protection class IP64
- Weight: 161g
- Includes: A456 measuring device, calibration foil, protective case, 2 batteries, user manual, 1 screen protector, USB cable, Elcomaster software
0 ₫ 0.0 VND
