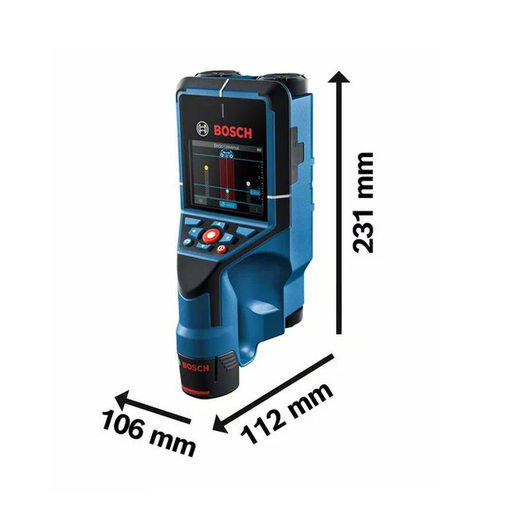

D-Tect 200 C / BOSCH
- Maximum detection depth:
Detection depth, dry concrete, maximum: 200 mm
Detection depth, young concrete, maximum: 60 mm
Detection depth, other wall types, maximum: 80 mm
Detection depth, magnetic metals, maximum: 200 mm
Detection depth, non-magnetic metals, maximum: 80 mm
Detection depth, live cable, maximum: 80 mm
Detection depth, wooden foundation structure, maximum: 38 mm
- Accuracy: ± 5 mm
- Wall type: Concrete, Young concrete, Dry wall, Regular brick/texture, Horizontal hole brick, Vertical hole brick, Heating board
- Objects that can be detected: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), electrical cables, non-energetic cables, data transmission cables and low voltage (power cables 3-phase, cavity), water-filled plastic pipes, hollow plastic pipes, wooden base structure
- Power supply: 12V Li-ion battery, 10.8V Li-ion battery or 4 1.5V LR6 (AA) batteries
- Weight: approximately 0.64 kg
- Additional functions: Leak detection, distance measurement

278HP / SEW - Taiwan
- Indirect type electrical test head, does not contact electrically charged objects
- 8 test voltage ranges: 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV
- Signaling with LED lights and sound
- Frequency: 40-70Hz
- Dimensions: 255mm x 96mm (HxW)
- Uses 3 1.5V batteries
- Compatible with most link bars. Can be used indoors and outdoors
- Maximum detection range can be up to 500kV
- Meets EN 61326-1 standards; EN 55011; EN 61000-4-2; EN 61000-4-3

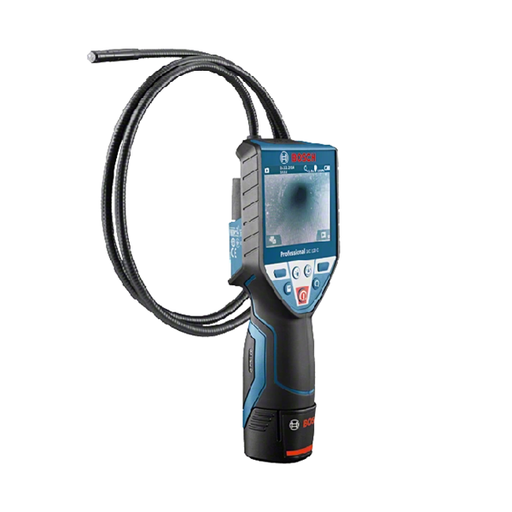

GIC 120 C / BOSCH
- Screen size: 3.5"
- Screen resolution: 320 x 240 px
- Camera head diameter: 8.5 mm
- Camera cable length: 120 cm
- Number of LED lighting levels: 3
- Weight: 0.64 kg

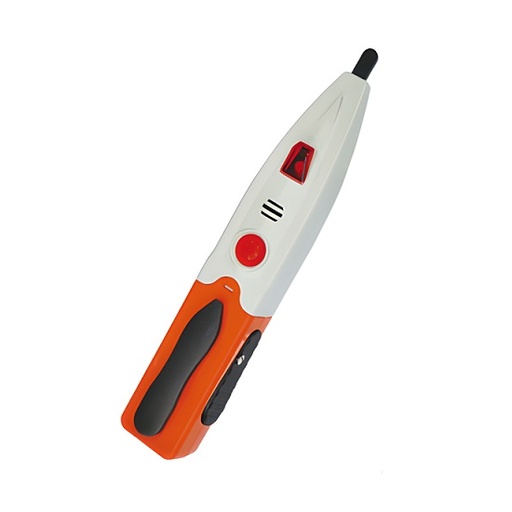

LVD-20 / SEW - Taiwan
- Voltage range: AC 12V-600V; DC 12V-600V
- Frequency: 30 to 330 Hz
- Measurement type: CAT. III 600V
- Warning when voltage is detected: LED and sound
- Operating temperature: 0 to 40°C
- Operating humidity: < 80% R.H.
- Operating altitude: maximum 2000 m
- Dimensions: 148(L) x 27(W) x 25(D)mm
- Weight: 57g
- Power: 2 x 1.5V (AAA) batteries

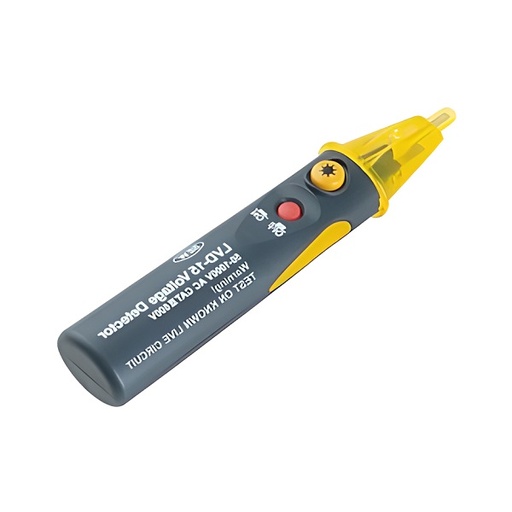

LVD-15 / SEW - Taiwan
- Detection voltage: 50V~1000V AC
- Working frequency: 50~500 Hz
- Dimensions: 142(L) × 28(W) × 27(D)mm
- Weight:. 45g
- Power: 2 x 1.5V (AAA)
- There is a bright LED light and an audible alarm when there is voltage.
- ON/OFF switch for longer battery life.

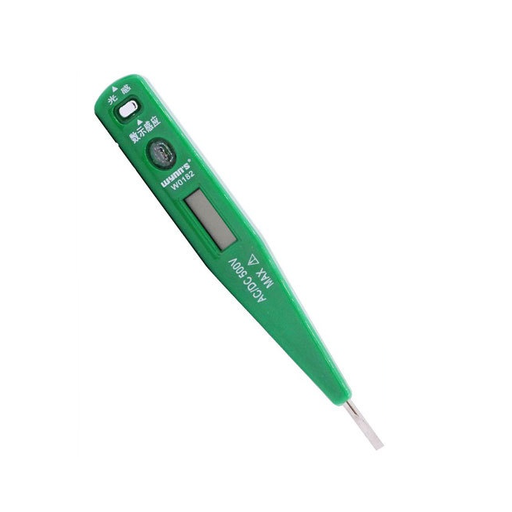

W0182 / Wynn's - China
- Measurement voltage range: 12-220VAC/DC, maximum 500VAC/DC
- Size: 1.5x12.5 cm
- LED touch screen with lights
- Material: body made of AS117-250 plastic; Screw rod made of high quality CR-V steel
- Weight: 20g

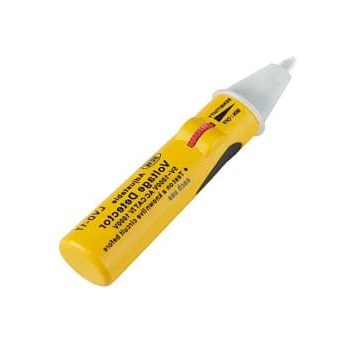

LVD-17 / SEW - Taiwan
- Detection voltage: 50V~1000V AC
- Measurement type: CAT IV 1000V
- Frequency: 50~500 Hz
- Operating temperature: 0~40°C
- Altitude: maximum 2000m
- Bright LED light and audible alarm when voltage is present.
- Dimensions: 142(L) × 28(W) × 27(D)mm
- Weight: 39g
- Power: 2 x 1.5V (AAA)

030709088/Berrylion - China
- Test range: 100-500V
- Input voltage: 500V
- Output voltage: 1V
- Weight: 75g
- LED indicator light

276SHD / SEW - Taiwan
- Working voltage
+ High voltage: 3kV ~ 24kV AC
+ Low voltage: 80 ~ 600V AC
- Frequency: 50/60Hz
- Retracted length: 255±30mm
- Length when pulled out: 870±30mm
- Warning Red LED and Buzzer (50dB)
- Detect voltage: 80V-24kV.
- Working temperature: -10˚ C ~ +50˚C
- Weight: 180g
- Power: LR44 battery (1.5V)
- Standard: EN61010-1 EN50081-1 EN55082-1En55022 EN61000-4-2 EN61000-4-3

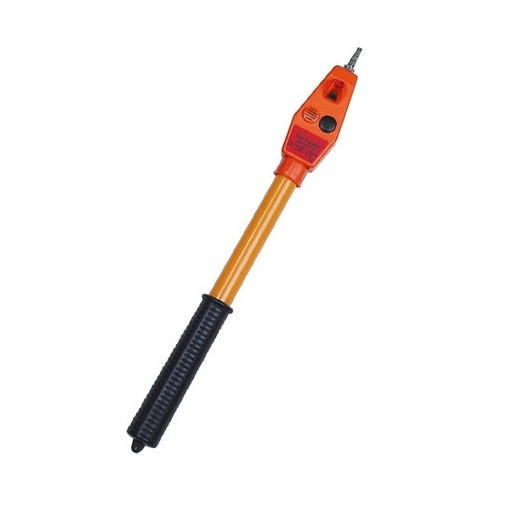

276HD / SEW - Taiwan
- Working voltage
+ High voltage: 3kV ~ 24kV AC
+ Low voltage: 80 ~ 600V AC
- Frequency: 50/60Hz
- Retracted length: 354+30mm
- Length when pulled out: 1010±30mm
- Warning LED flashes and Buzzer sounds (50dB)
- Detect voltage: 80V-24kV.
- Working temperature: -10˚ C ~ +50˚C
- Weight: 180g
- Power: LR44 battery (1.5V)
- Standard: EN61010-1 EN50081-1 EN55082-1En55022 EN61000-4-2 EN61000-4-3

300HP (275-KV02) / SEW - Taiwan
- Test voltage range: OFF--TEST--240V--3.3kV--6.6kV--11kV--22kV--33kV--66kV--132kV--275kV
- The maximum detection range can be 500kV
- LED warning and audible siren
- At 240VAC detection distance: 5 ~ 10cm
- Operating temperature: -10°C~50°C
- Protection level: IP66.
- 3 LEDs in a circle for easier viewing in any direction (360° LED indicator).
- Power source: 3 x 1.5V "C"
- Weight: 590g
- Dimensions: 265x117mm

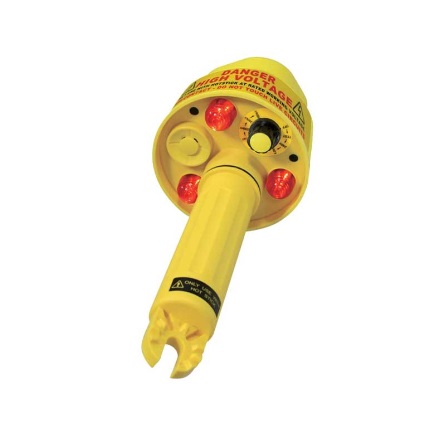

300HP (275-KV01) / SEW - Taiwan
- Test voltage range: OFF--TEST--240V--2kV--6kV--11kV--22kV--33kV--132kV--275kV
- The maximum detection range can be 500kV
- LED warning and audible siren
- At 240VAC detection distance: 5 ~ 10cm
- Operating temperature: -10°C~50°C
- Protection level: IP66.
- 3 LEDs in a circle for easier viewing in any direction (360° LED indicator).
- Power source: 3 x 1.5V "C"
- Weight: 590g
- Dimensions: 265x117mm

275HP-500kV01 / SEW - Taiwan
- Test voltage range: OFF--TEST--240V--3.3kV--11kV--22kV--33kV--66kV--110kV--220kV--330kV--500kV
- LED and sound warnings
- Operating temperature: -10ºC~50ºC
- At 240VAC detection distance: 5~10cm
- Power source: 3 x 1.5V "C"
- Weight: 600g

275HP-275kV01 / SEW - Taiwan
- Test voltage range: OFF--TEST--240V--2kV--6kV--11kV--22kV--33kV--132kV--275kV
- LED display and audible buzzer
- Operating temperature: -15°C~55°C
- At 240VAC detection distance: 5 ~ 10cm
- Power source: 3 x 1.5V "C"
- Weight: Approx. 550g (including battery)
- Suitable for all types of poles. For both indoor and outdoor use

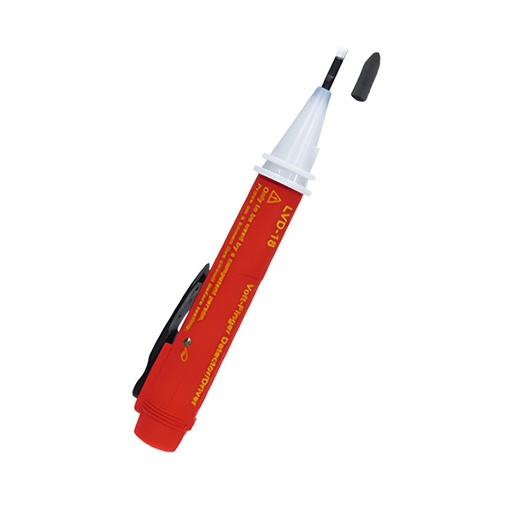

LVD-18 / SEW - Taiwan
- Direct contact voltage detection: 50V~600Vac
- Non-contact voltage detection: 50V~600Vac
- Frequency: 50~500Hz
- Measurement type: CAT III 600V
- LED and audio alerts when voltage is detected
- Humidity: < 80% R.H.
- Altitude: max 2000m
- Power: 1.5V (AAA) × 2
- Dimensions: 165 (L) x 27 (W) x 22 (D) mm
- Weight including battery: 46g

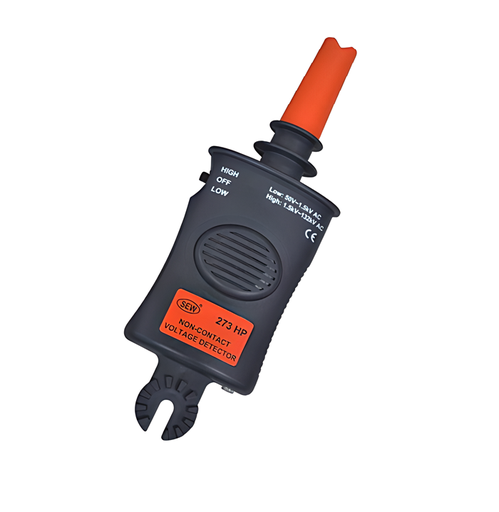

273HP / SEW - Taiwan
- High voltage tester with two optional measuring ranges: Low: 50V~1.5kV; High: 1.5kV~132kV
- Electric used:
+ Off state: 0uA
+ Low voltage detection mode: <20mA
+ High voltage detection mode: <20mA
- Mode switching button: HIGH/OFF/LOW
- There is a glowing LED light and an alarm sound when voltage is detected
- Operating temperature: 0ºC~50ºC
- Dimensions: 245 x 80 x 37 mm
- Weight: 175g
- Power supply: 9V (6LF22) x 1 Alkaline battery
- Must use a working pole when testing high voltage 1.5kV ~ 132kV
- Safety standards: EN 61326-1, EN 61000-4-2, EN 61000-4-3

275HP-275kV02 / SEW - Taiwan
- Test voltage range: OFF--TEST--240V--3.3kV--6.6kV--11kV--22kV--33kV--66kV--132kV--275kV
- LED display and audible buzzer
- Operating temperature: -15°C~55°C
- At 240VAC detection distance: 5 ~ 10cm
- Power source: 3 x 1.5V "C"
- Weight: Approx. 550g (including battery)
- Suitable for all types of poles. For both indoor and outdoor use

PD800IW is a wireless phase isotope tester designed for convenient phase angle testing, easy to use because it does not require connecting cables between probes. The device includes a probe and a reference probe that are connected via wifi and will operate reliably at distances of up to 100 feet (30 meters). The device can use voltage levels from 120V to 800kV
Specifications
- Type: PD800W.
- Place of manufacture: Bierer Associates Inc (USA).
- Use indoors and outdoors.
- Operating temperature: -100C to +500C.
- 9V rechargeable battery with removable charger 220V/50Hz.
- LED screen displays phase difference angle.

- Indirect type electrical test head, does not contact electrically charged objects
- 8 test voltage ranges: Off/ 240V/ 4.2kV, 15kV, 25kV, 35kV, 69kV, 115kV, 230kV
- Signaling with LED lights and sound
- Uses 3 1.5V batteries
- Compatible with most link bars. Can be used indoors and outdoors
- Maximum detection range can be up to 230kV

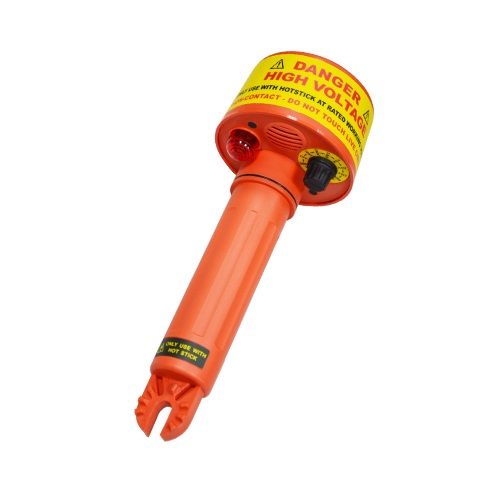

275HP - 230kV02 / SEW - Taiwan
- Test voltage range: OFF--TEST--240V--4.2kV--15kV--25kV--35kV--69kV--115kV--230kV
- LED display and audible buzzer
- Operating temperature: -15°C~55°C
- At 240VAC detection distance: 5 ~ 10cm
- Power source: 3 x 1.5V "C"
- Weight: Approx. 550g (including battery)
- Suitable for all types of poles. For both indoor and outdoor use
